Metal Base Heat Dissipation PCB
PCBs for LED lights require the heat dissipation property because LED elements themselves generate heat and excessively high temperature lowers the brightness of the LED light. Meiko started research and development of Metal Base Heat Dissipation PCBs combining cost-efficient aluminum and high-quality heat dissipation resin earlier than competitors, and achieved high heat dissipation and low cost by mass production.
Features
- High heat dissipation
Applications
- Automotive LED head lamp
- Automotive EPS
- DC/DC converter
- Various LED modules

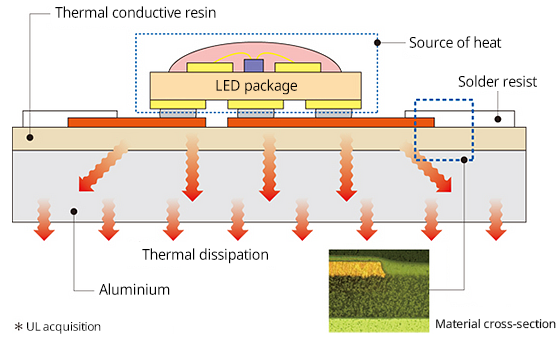

Explanatory Drawing
