FR4-FLEX/M-VIA Flex®
FR4-FLEX/M-VIA Flex® is rigid-flex PCB without polyimide and can be utilized for applications that do not require repeated bending. Meiko has two types of Rigid-Flex PCB without polyimide, and FR4-FLEX achieved low-cost and high-reliability PCBs by using ordinary FR-4 only as the primary material. On the other hand, M-VIA Flex® improves flexibility by combining RCC and FR-4 as primary materials.
FR4-FLEX/M-VIA Flex® can be used as an alternative to connectors to reduce process load and cost by reducing connectors.
Features
- Reduction in process load and cost by reducing connectors
- Offer of the three-dimensional structure and larger capacity of multiple memories
- Zo design of flexible sections and improved transmission quality
Applications
FR4-FLEX
- Automotive devices
- Amusement
M-VIA Flex®
- Consumer devices
- Mobile terminals

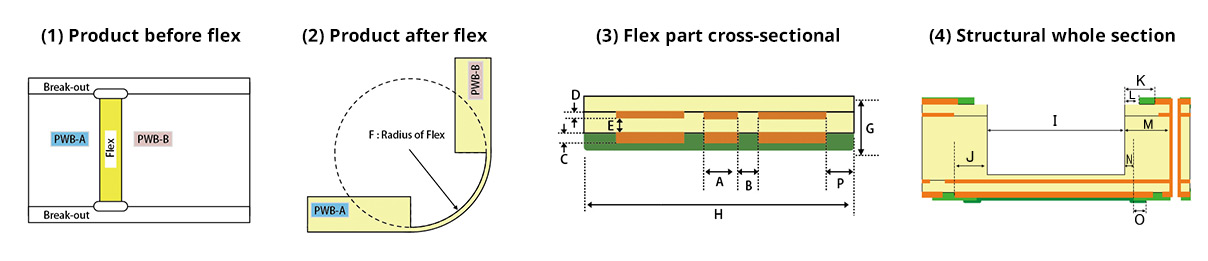

Explanatory Drawing
Design rule
| Parameter | Symbol | Standard Spec | ||||
|---|---|---|---|---|---|---|
| Line width/spacing | A / B | ≧0.15mm / ≧0.15mm | ||||
| Conductor thickness outer/inner layer | C / D | 0.051mm / 0.035mm | ||||
| Dielectric thickness | E | 0.1mm | ||||
| Minimum radius of flex | F | ≧3.8mm | ||||
| Thickness of flex | G | 0.20 - 0.24mm | ||||
| Width of flex | H | <160 mm | ||||
| Length of flex | Ｉ | 6.0mm (90deg) |
8.0mm (120deg) |
|||
| Conductor length in rigid part | J | ≧1mm | ||||
| Spacing between conductor and flex | K | ≧1mm | ||||
| Spacing between SR-opening and flex | L | ≧0.5mm | ||||
| Spacing between TH and flex | M | ≧2mm | ||||
| Spacing between flex SR and flex | N | ≧0.5mm | ||||
| Overlapping of flex SR | O | ≧0.5mm | ||||
- These figures are merely settings. They are subject to change without notice.
