Rigid-Flex PCB

These PCBs integrate flexible PCBs and rigid PCBs. Because connectors are not required for connection between layers, they are ideal for digital devices that are vulnerable to noise effect. In addition, these PCBs enable the creation of thinner devices by connector-less design and achieve three-dimensional implementation. They are utilized for small mobile devices and digital still cameras that incorporate many high-performance components or cameras.

Rigid-Flex PCB

Features

  • Contribution to enhancing the degree of freedom of total design and bending

Applications

  • Cellular phones
  • Digital cameras
  • Digital video cameras
  • Camera modules

Stackup

1+2+1 Structure
1+2+1 Structure
2+4+2 Structure
2+4+2 Structure

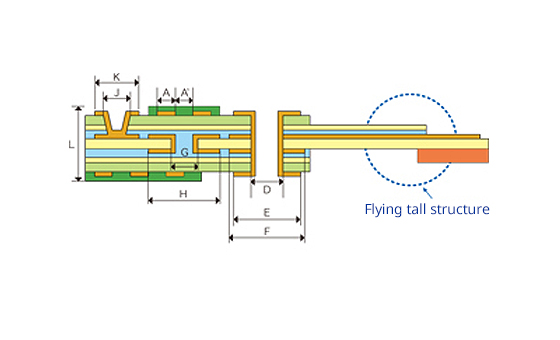

Design rule

unit:μm
Parameter Simbol 2011 2012
Line width / Spacing HDI Layer A/A` 75/75 75/75
Rigid Layer B/B` 75/75 75/75
FPC Layer C/C` 50/75 50/50
Plated Through Hole Drill Diameter D 250 200
Pad Diameter Outer Layer E 500 450
Inner Layer F 550 500
IVH Drill Diameter G 250 200
Pad Diameter Outer Layer H 500 450
Inner Layer I 550 500
Laser Via Via Diameter J 100 100
Pad Diameter K 250 250
PCB Thickness 4Layer (1+2+1) L 250 200
6Layer (2+2+2) 450 400
  • These figures are merely settings. They are subject to change without notice.
