Product

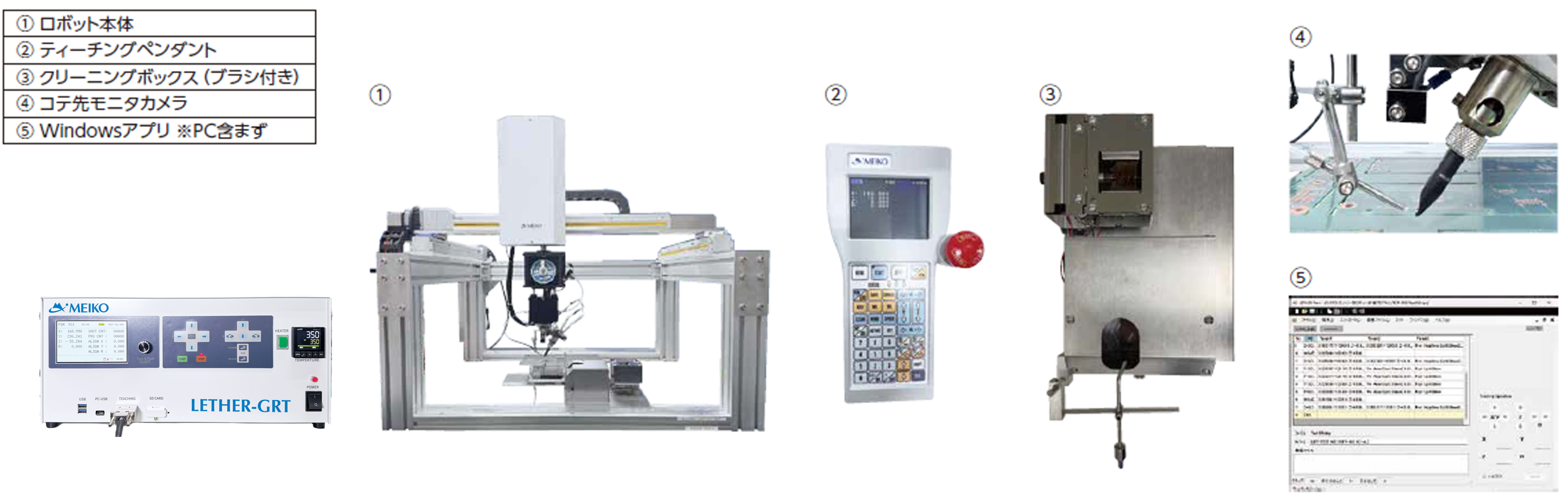

| Product Name | LETHER-GRT |
|---|---|
| Construction method | Iron tip Type |
| Robot Type | Orthogonal type |

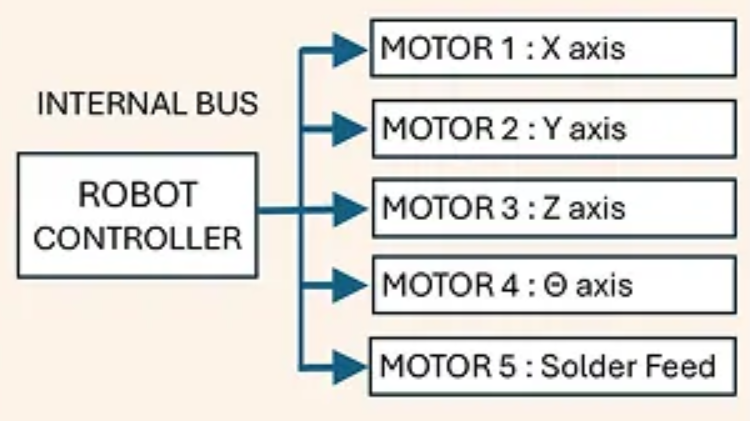

| Number of axes | 5 axis(X,Y,Z,θ, solder feed) |
| Solder Diameter | 0.5～1.2㎜ |
| Heater Capacity | Chose from 130/260/390W |
| Robot dimensions （W:D:H） |

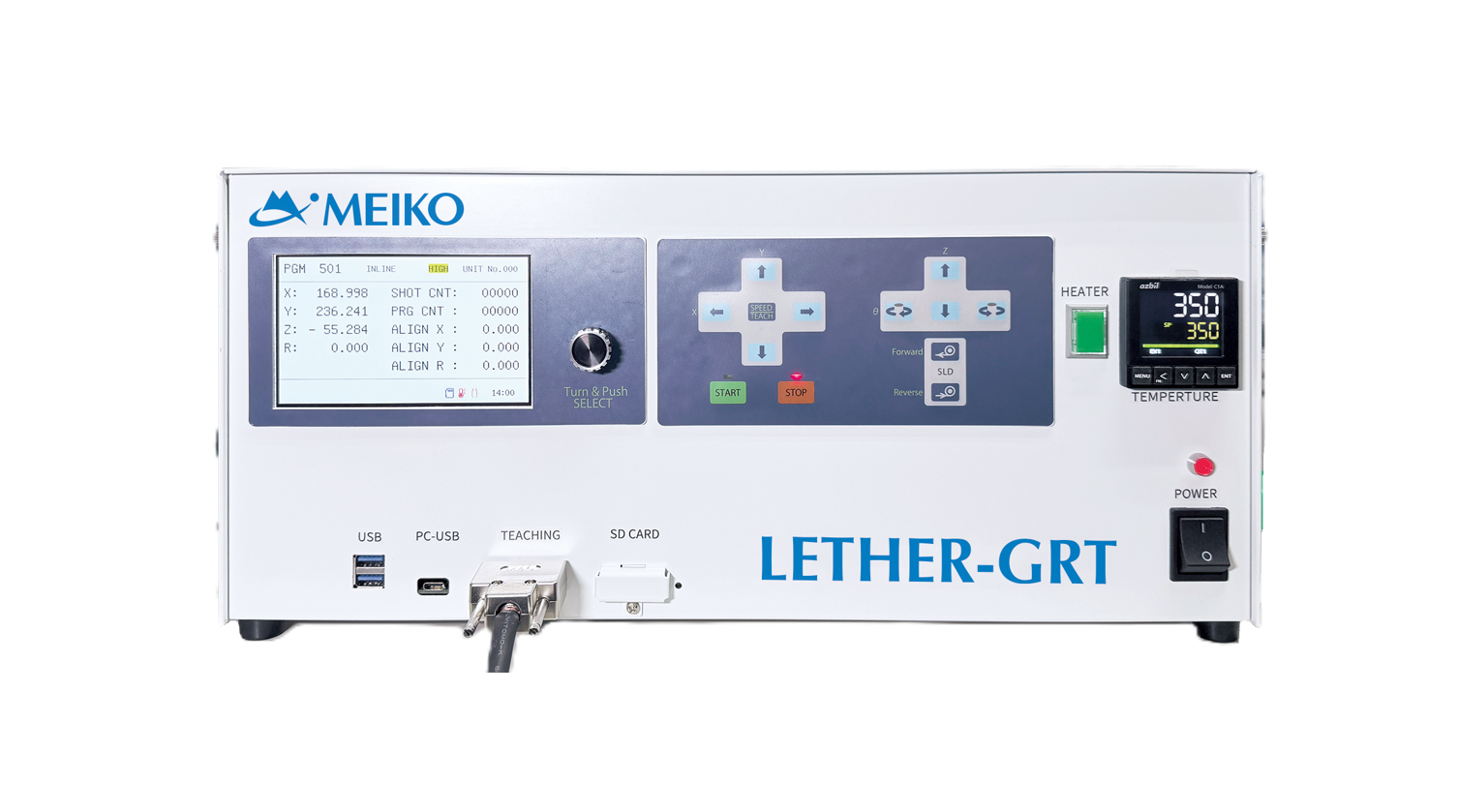

Robot：W1010㎜×D860㎜×H795㎜ Controller：W450㎜×D365㎜×H210㎜ |
| Z stroke | 100mm |
| Cable length | Robot to Controller 4m |
| Max Power Consumption | 500W (Except Heater) |
| Weight | 85kg（Controller:15kg , Robot:70kg） |
| Power supply | AC 100～240V 50/60Hz |
