We offer solutions that can be used in a variety of situations, including monitoring and maintenance of manufacturing facilities and equipment, strengthening building security, monitoring remote locations, and statistical surveys using information records.
Gold plating current monitoring IoT system
The inner walls of the Ni tanks used in the gold plating process change over time, causing fluctuations in the DC current value of the current device.If left unattended, this can lead to deterioration of the tanks, so DC current monitoring is essential.Conventionally, this was done manually, but it took time for the abnormality to be discovered, which led to tank replacement and product defects.
Therefore, we developed a DC current monitoring system, set up measurement points to collect DC current and DC voltage values, and made improvements so that the measured values can be monitored on the web. This has created an environment where an alert can be sent out immediately when an abnormal current is discovered.
[Introduction Effects] Reduced frequency of plating tank replacement, lowered product reject rate, improved productivity

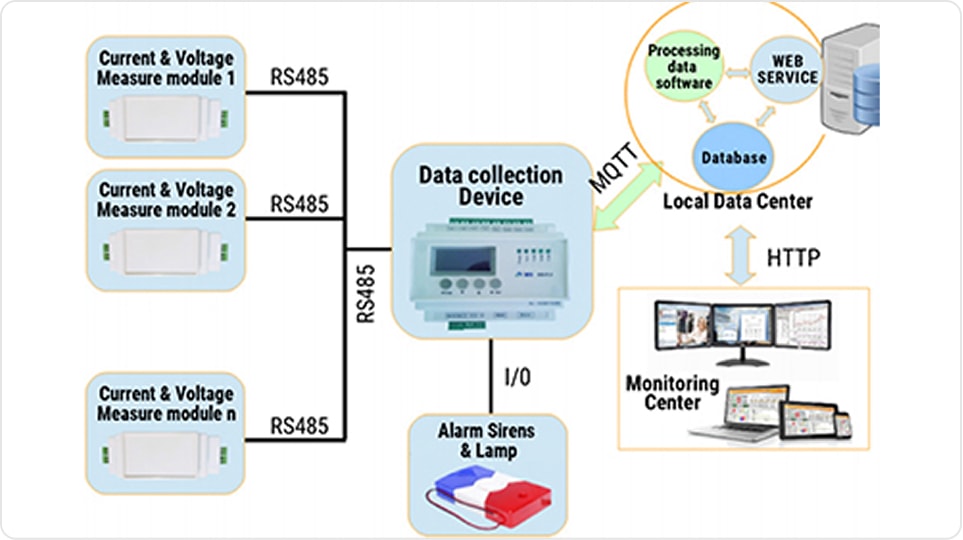

Overall system diagram

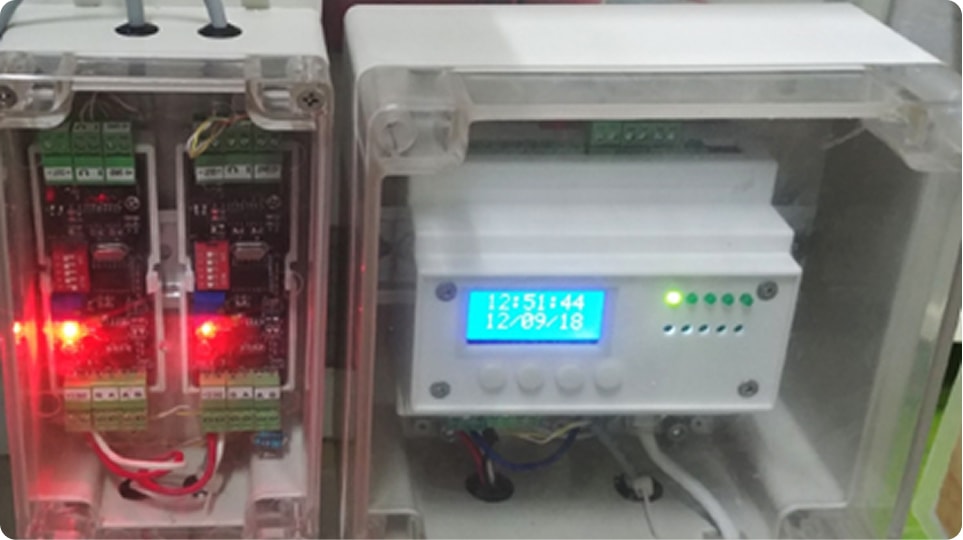

Tabulation equipment

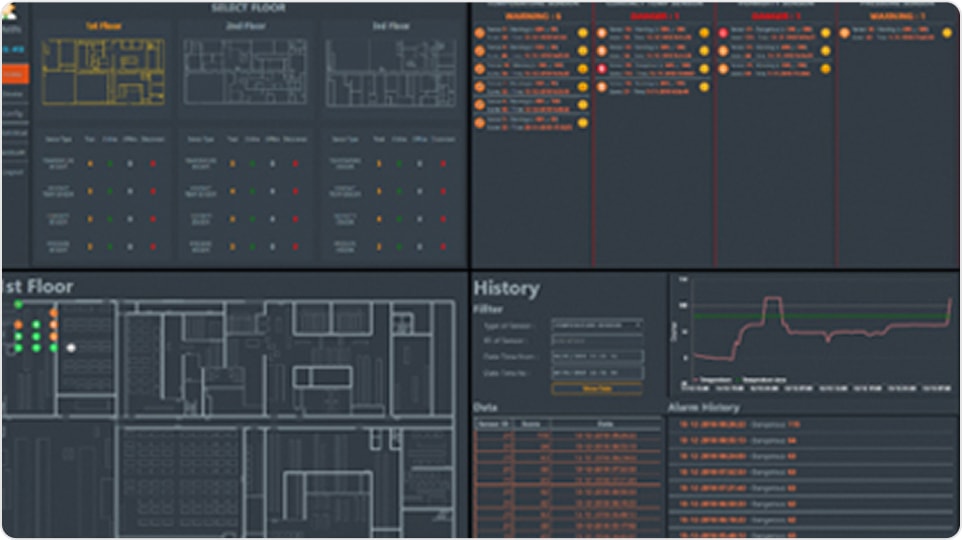

Monitoring Screen
How the alert is triggered (video)
Electricity usage monitoring IoT system
[Introduction Effects] Visualizing electricity usage from the entire factory to each line, contributing to energy-saving activities, especially for air conditioning and lighting installed in common areas

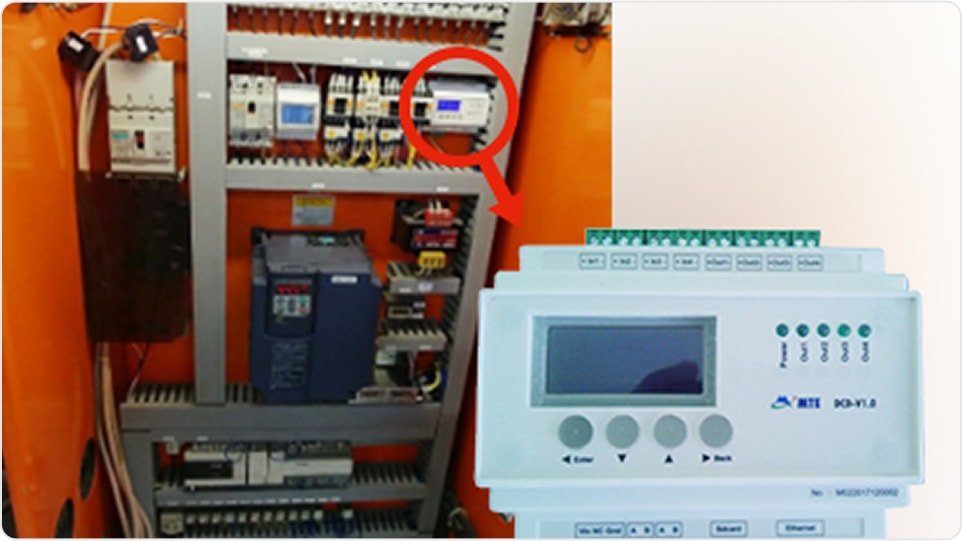

Data collection equipment
Data collection device upgrade
Factory monitoring and disaster prevention system
[Introduction Effects] Sensors measure heat, airflow, vibration, and CO₂ generated within the factory to prevent accidents before they occur.

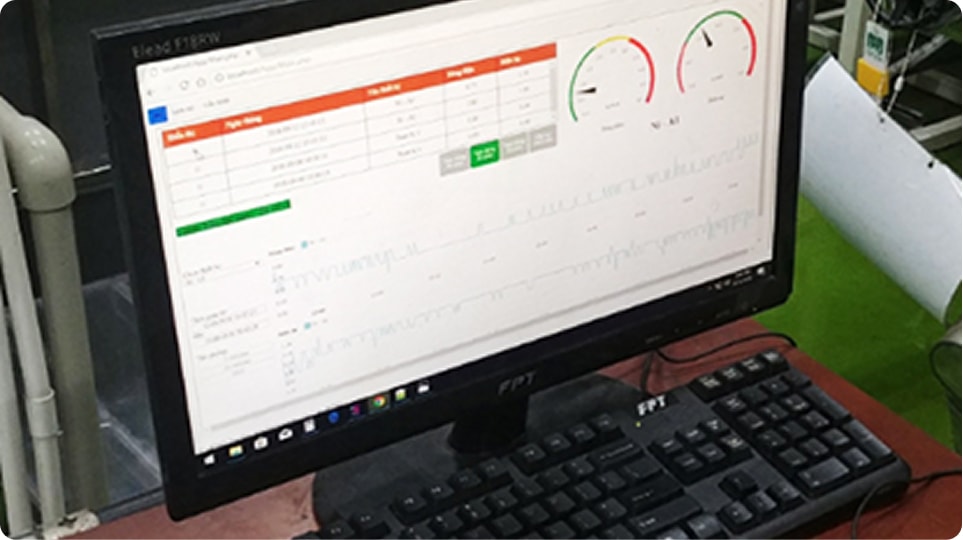

Real-time web viewing

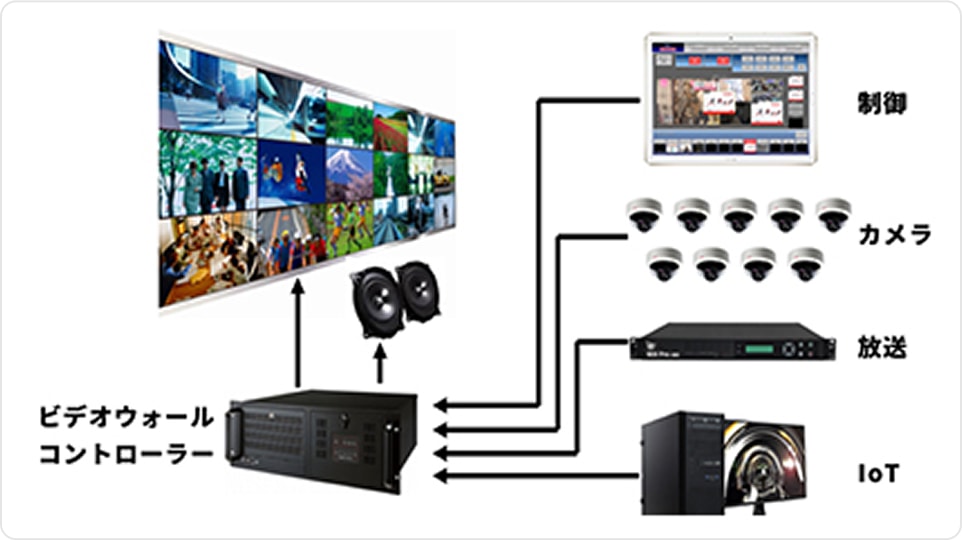

Joint development with the Visual Equipment Department and Meiko Techno
